What is an Electromagnetic Coil? Structure, Function, and Applications

An electromagnetic coil is a fundamental electrical component that makes modern technology possible. From medical imaging equipment to aerospace navigation systems, coils play a critical role in countless industries. These components deliver controlled power and precision in both everyday electronics and advanced engineering applications.

An electromagnetic coil is a wound conductor that produces a magnetic field when an electric current passes through it. This principle, explained by Ampere's Law, is the foundation of electromagnetism. Coils are essential in devices that rely on electrical energy being converted into magnetic energy — or vice versa.

Electromagnetic coils are designed with two key components:

• Conductor — a highly conductive wire, often copper, that carries the electrical current.
• Core — usually a ferromagnetic material such as iron, which amplifies the magnetic field.

The conductor is wound helically or spirally around the core, with each loop of wire called a turn.

When electrical current passes through the coil's conductor, a magnetic field forms around it. The strength of the field depends on two main factors:

• The amount of current flowing through the wire.
• The number of turns in the coil.

Single-turn coils generate weaker fields. Multi-turn coils provide stronger, more efficient fields for the same current.

This flexibility allows engineers to precisely control electromagnetic power, which makes electromagnetic coils extremely versatile in both small-scale and large-scale applications.

Electromagnetic coils are indispensable across many industries, powering critical technologies such as:

• Aerospace — propulsion systems, navigation equipment.
• Automotive — speed sensors, tachometers, electric power systems.
• Commercial — RFID and barcode scanners, exercise equipment, electric toothbrushes, wind turbines.
• Communications — power supplies, RF antenna duplexers, noise suppression, RF/microwave switching.
• Industrial — level sensors, control joysticks, automation components.
• Laser Technology — surgical devices, medical therapeutics, laser vision correction, entertainment light shows.
• Medical — imaging equipment (MRI, CT), ECG & EEG monitoring, neurostimulation devices.
• Military & Defense — radar, infrared and ultraviolet sensing, signal jamming, missile defense systems.
• Music & Audio — amplifiers, recording equipment, speaker crossovers, custom guitar pickups with noise cancellation.

From powering advanced defense systems to improving everyday consumer devices, electromagnetic coils play a critical role in modern technology. Their ability to generate controlled magnetic fields makes them one of the most adaptable components in electronics and engineering today.

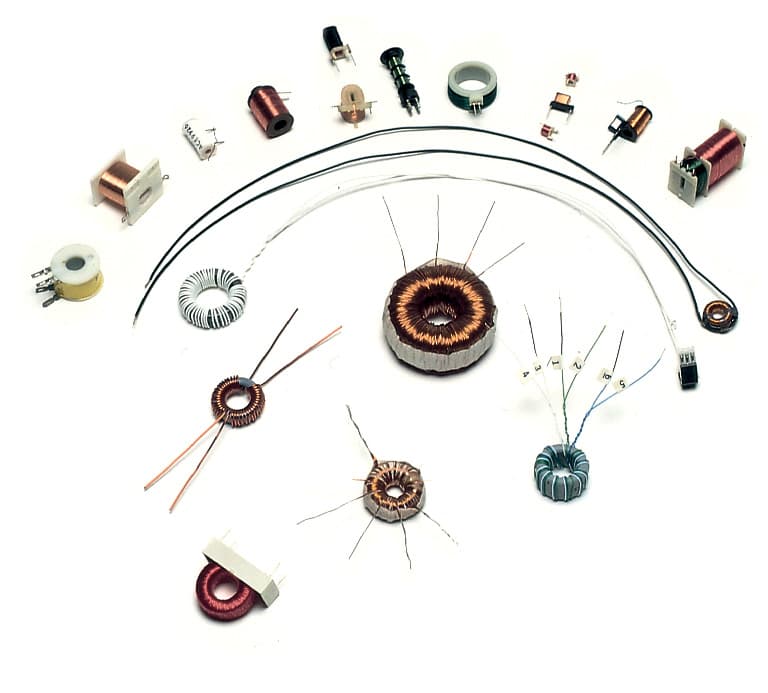

Able Coil & Electronics produces a wide range of wire wound electromagnetic products. These products include custom coil assemblies, fine wire assemblies, self-supporting coils, toroids, high frequency transformers, power & signal transformers, cable and connector harnesses, encapsulated assemblies and integrated electro-mechanical assemblies.

Our experts work with customers to find the perfect solution for their application, including items that require tight tolerances, challenging geometries, high reliability, and stringent environmental requirements.

Since 1969, Able Coil & Electronics has been a trusted full-service contract manufacturer, delivering custom wire wound products for the most demanding applications.

With 40,000+ sq. ft. of manufacturing space, we're ready to take on your toughest challenges. Our team has the expertise to meet complex, custom requirements with precision and reliability. With flexible prototyping and manufacturing capabilities, we're equipped to handle production runs of any size.

Our commitment to quality assurance stands as a testament to our industry leadership. We are certified to AS9100D and ISO 9001:2015, ITAR registered, and proudly 100% manufactured in Bolton, CT, USA.

At Able Coil & Electronics, custom is our standard. We're ready to be your trusted partner for innovative, high-performance wire-wound solutions. Contact us today to get started.
